DRO (Digital Readout) System

An electronic measuring system used on machine tools such as milling machines, lathes, boring machines, grinding machines, and CNC retrofit machines. Shows exact position on digital display for improved accuracy and reduced errors.

Our Services Get Quote

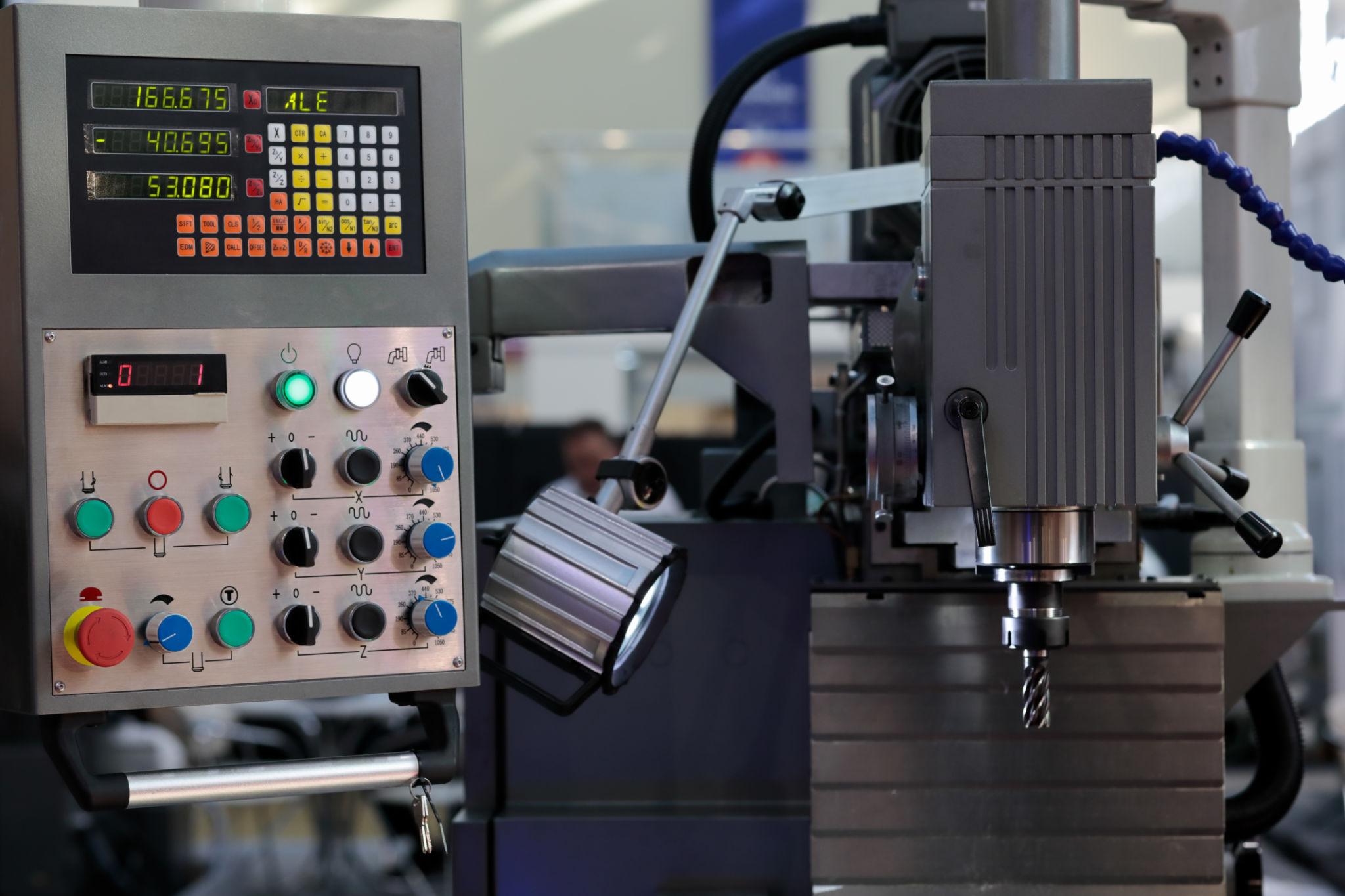

What is a DRO?

Understanding Digital Readout Systems

A DRO (Digital Readout) System is an electronic measuring system used on machine tools such as milling machines, lathes, boring machines, grinding machines, and CNC retrofit machines. It shows the exact position of machine movement on a digital display, improving accuracy and reducing manual measurement errors.

Main Parts

DRO System Components

Digital Readout (DRO) System consists of several important components that work together to provide accurate machine position measurements.

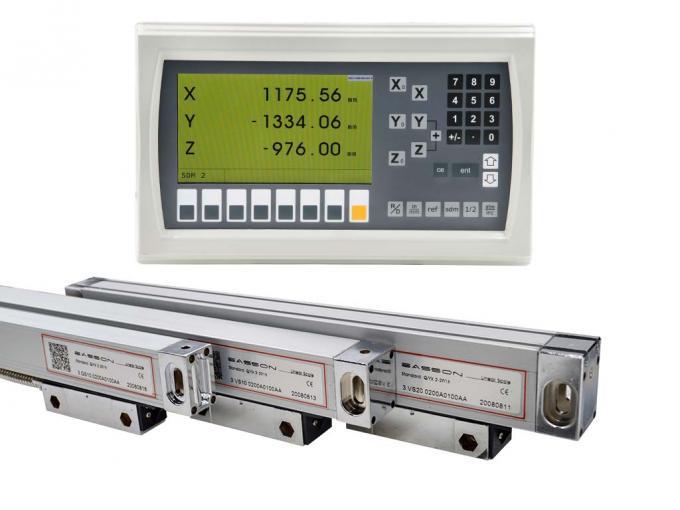

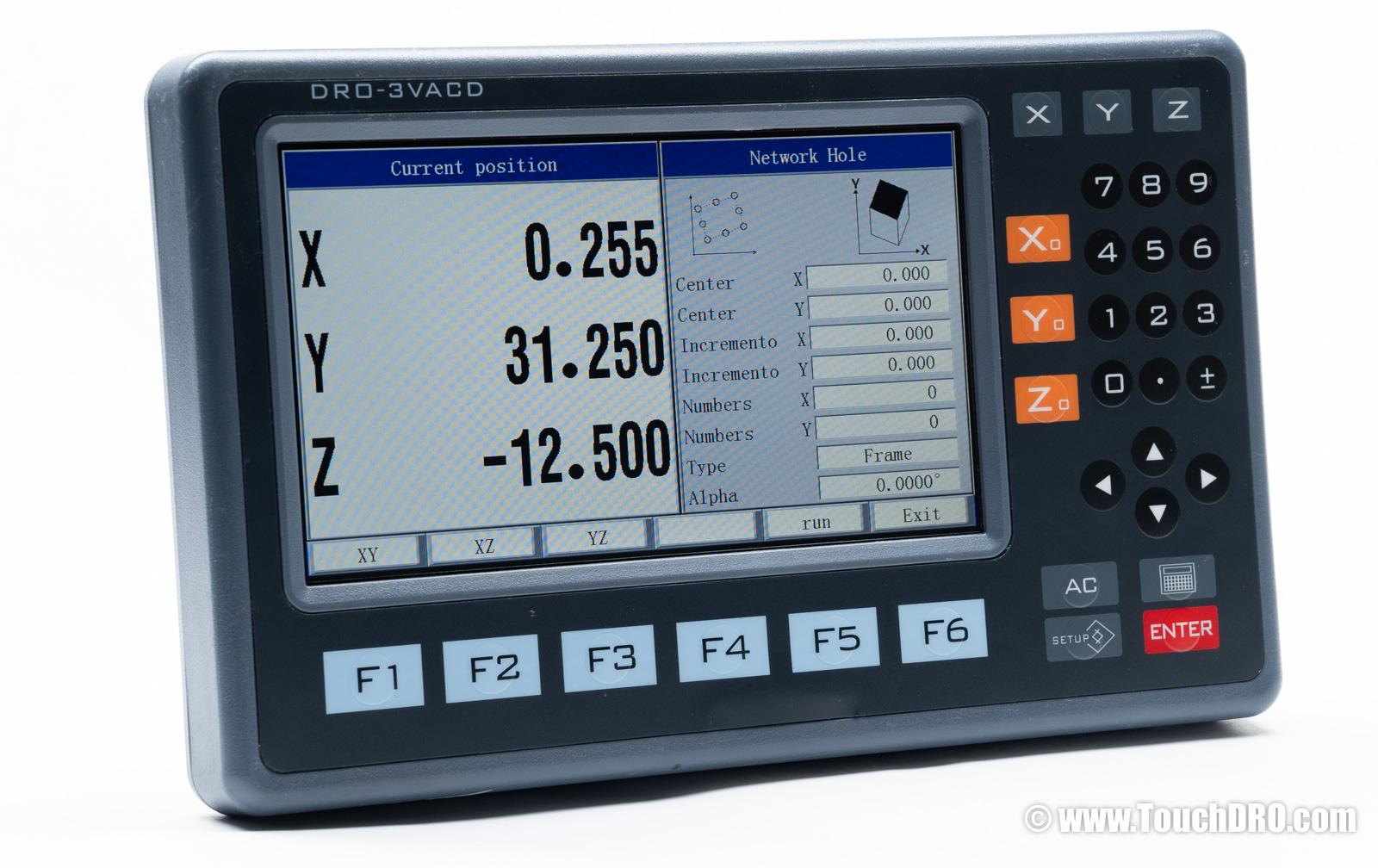

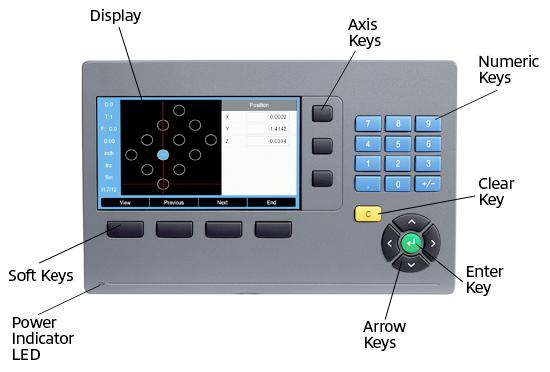

1. Display Unit (DRO Console)

• Main digital display screen
• Shows X, Y, Z axis positions
• Supports metric (mm) and imperial (inch) measurements
• Includes zero setting, PCD, calculator, and memory functions

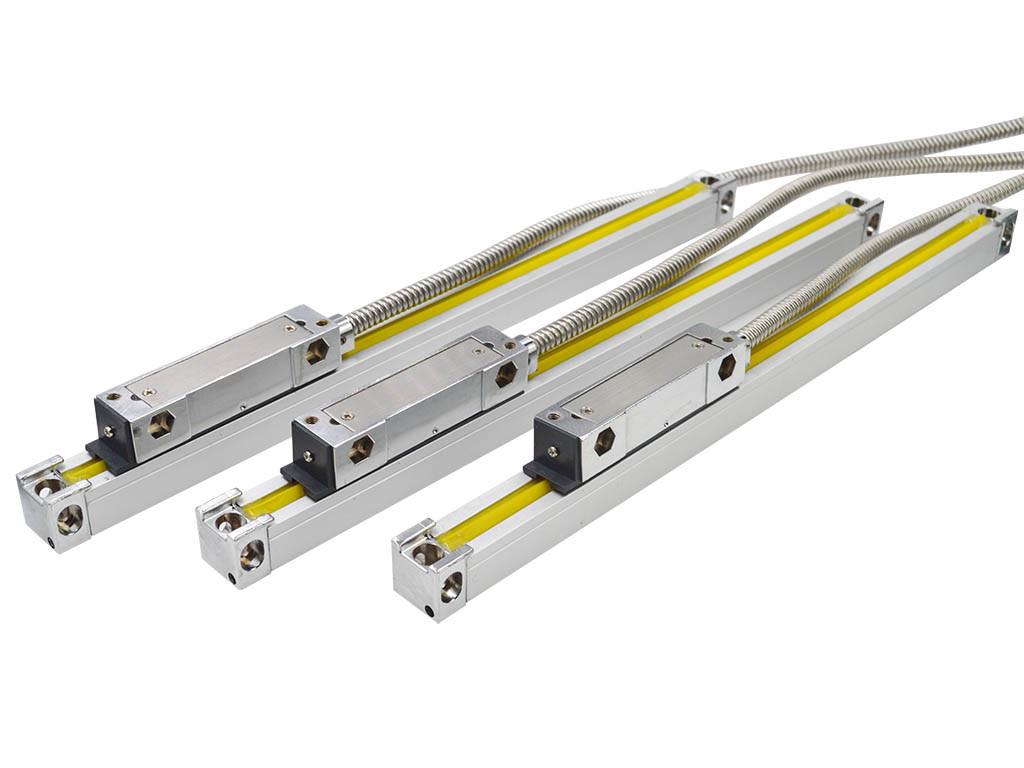

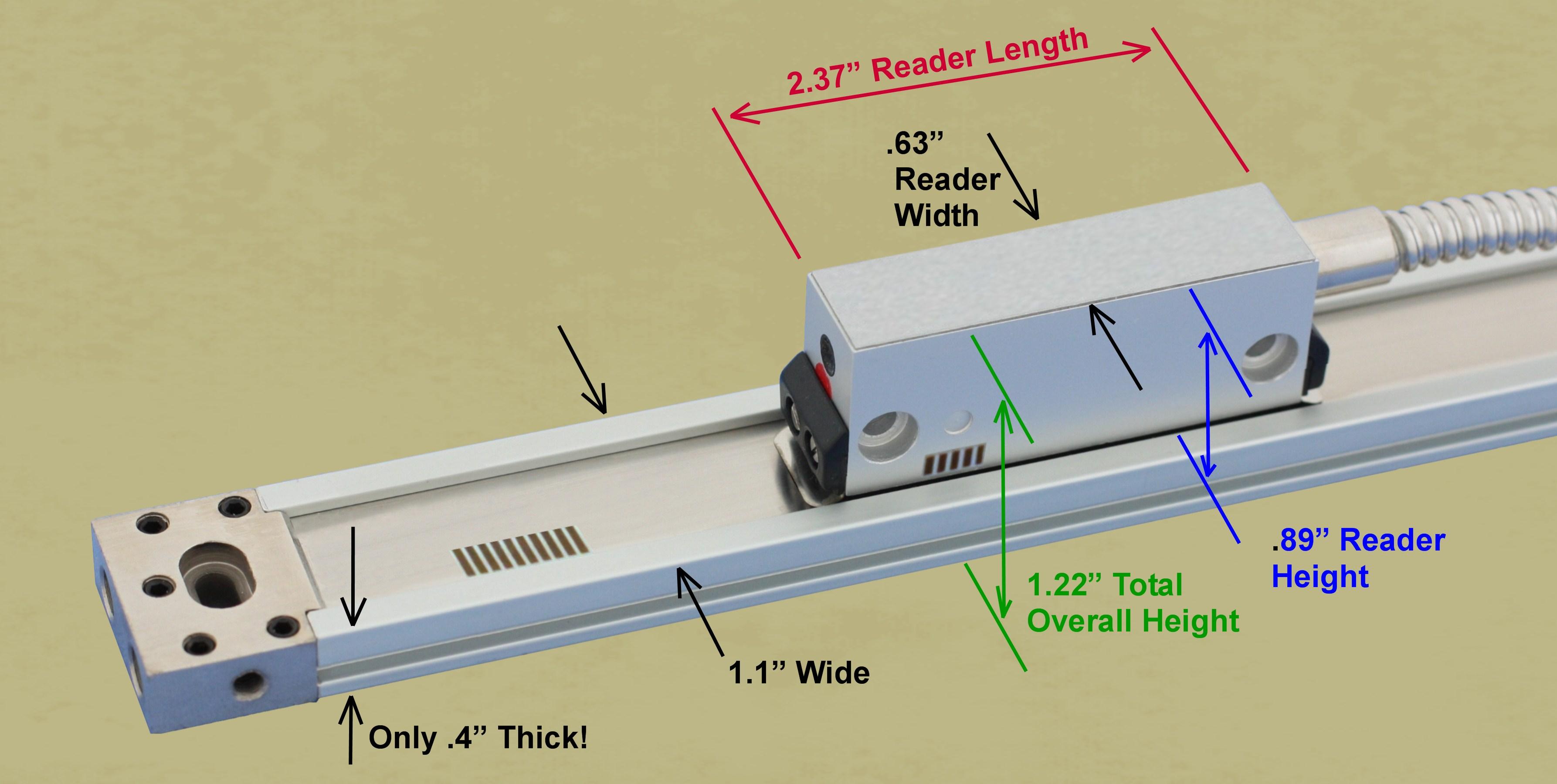

2. Linear Scale (Encoder)

• Mounted on machine axes
• Measures exact movement of the machine table
• Available in different lengths based on machine size
• Can be glass scale or magnetic scale

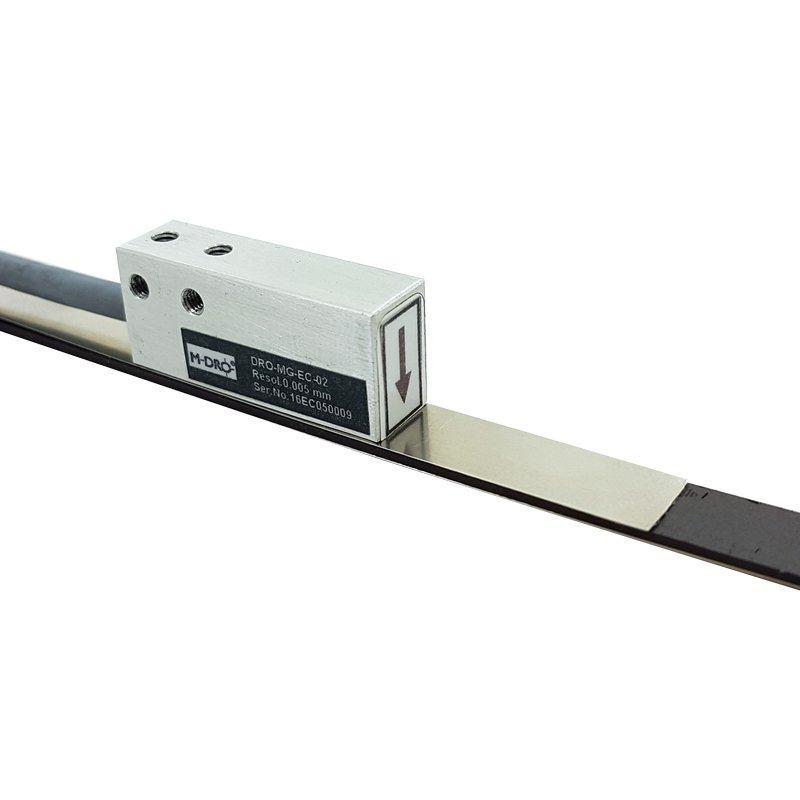

3. Reader Head

• Attached to the linear scale
• Reads movement from the scale
• Converts movement into electronic signals
• Sends position data to the display unit

4. Mounting Brackets

• Used to securely install linear scales and reader heads
• Custom-designed according to machine type
• Ensures proper alignment for accurate measurements

5. Signal Cables

• Connect reader head to the DRO display
• Carry measurement signals from scales to display unit
• Shielded cables for noise-free transmission

6. Protective Cover & Power Supply

• Protects scales from coolant, dust, chips, and oil
• Increases system life and reliability
• Power supply provides electrical power to display unit
• Usually operates on standard AC power

How It Connects

Component Layout Flow

Machine Movement

Linear Scale

Reader Head

Signal Cable

DRO Display

Position (X, Y, Z)

Common Axis Configurations

Available Options

Axis 01

1-Axis DRO

1 Display + 1 Scale

Axis 02

2-Axis DRO

1 Display + 2 Scales

Axis 03

3-Axis DRO

1 Display + 3 Scales

Axis 04

4-Axis DRO

1 Display + 4 Scales

Machines Using DRO Systems

Milling Machines

Lathe Machines

Surface Grinders

Boring Machines

Drilling Machines

Tool Room Machines

CNC Retrofit Machines

Working Principle

How a DRO System Works

Step 01

Machine Moves

Machine table moves along its axes.

Step 02

Scale Detects

Linear scale detects movement accurately.

Step 03

Reader Reads

Reader head converts movement into electronic signals.

Step 04

Display Shows

Display unit shows the exact position.

Step 05

Operator Monitors

Operator can monitor dimensions in real time.

Why Choose DRO?

Advantages of DRO Systems

Advantage 01

Higher machining accuracy

Advantage 02

Faster setup time

Advantage 03

Reduces operator mistakes

Advantage 04

Improves productivity

Advantage 05

Easy conversion between mm and inches

Advantage 06

Better repeatability

Advantage 07

Useful for manual machines and retrofit projects
